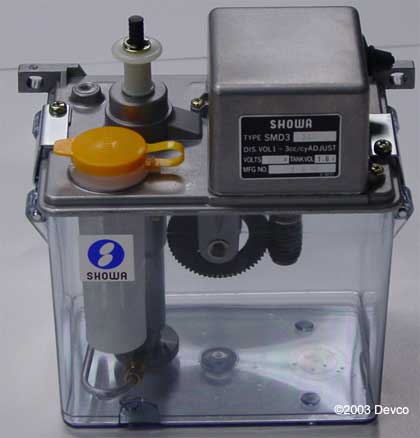

MODEL: SMD Piston Pump

Click on Image for Larger View

Accessories: Meter Units, Junctions, Tubing and Adapters

 AUTOMATIC CYCLIC
Model SMD is an automatic cyclic pump for resistance lubrication system. Pump specifications are the same as the SMA. However, this model comes with the terminal blocks for easy wiring and an inlet filter basket as standard accessaries. Options include a float switch and protection cover. If your needs require a more Heavy-Duty Pump take a look at the Showa YMAS.

Motor Voltages:

100/110V, 1-PH, 50/60 Hz

200/220V, 1-PH, 50/60 Hz

Low Level Switch (optional)

Reservoir: Plastic (2L) Replacement Resv. Part Number: SMD-T

Notice: Suction Filter should be replaced every 6 months or less.

Filter Part Number: F/1001
Model Number Cycle Time (min) Output (cc/cycle) "adjustable" Output (cc/hour) Output Thread Operating Pressure MPA (kgf/cm2) Pump Dimensions (mm)
Min Max Length Depth Height Height (with Protection Cover)
SMD3-5 5 1-3 12 36 M8x1 0.2 (2) 195 117

SMD3

(212 Max)



 237.5
SMD3-10 10 6 18
SMD3-15 15 4 12
SMD3-30 30 2 6
SMD3-60 60 1 3
SMD3-120 120 .50 1
SMD6-5 5 3-6 36 72 M8x1 0.3 (3)

SMD6

(232 Max)

SMD6-10 10 18 36
SMD6-15 15 12 24
SMD6-30 30 6 12
SMD6-60 60 3 6
SMD6-120 120 1.50 3
