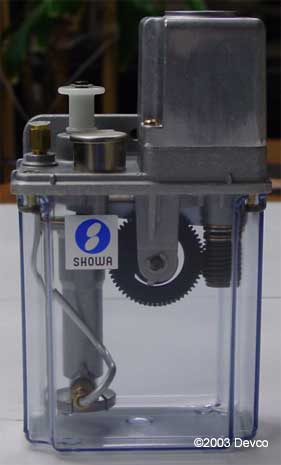

SSMA Piston Pump
 |
AUTOMATIC CYCLIC - Economical |
|
The SSMA is the most economical of the automatic cyclic pumps. Because of its compactness, it allows automatic centralized lubrication where space is at a premuim. This makes it especially well suited to small machines which previously required manual lubricating. The clear plastic reservoir allows easy viewing of the lubricant level. A three holed bracket is provided for convenient mounting. A self-closing lid makes refilling simple. An optional float switch is available. If you require a more Heavy-Duty pump take a look at the Showa SMA, Showa SMD, or the Showa YMAS. |
||
Motor Voltages: 100/110V, 1-PH, 50/60 Hz 200/220V, 1-PH, 50/60 Hz |
Low Level Switch (optional)
|
|
Reservoir: Plastic (1L) Replacement Reservoir Part Number: SSMA-T
|
Notice: Suction Filter should be replaced every 6 months or less. Filter Part Number: F/1001 |
|
| Model Number | Cycle Time (min) | Output (cc/cycle) | Output (cc/hour) | Output Thread | Operating Pressure MPA (kgf/cm2) | Pump Dimensions (mm) | |||
| Min | Max | Length | Depth | Height | |||||
| SSMA2-5 | 5 | 1-2 | 12 | 24 | M8x1 | 0.3 (3) | 134 | 91.5 | 190.5 |
| SSMA2-10 | 10 | 6 | 12 | ||||||
| SSMA2-15 | 15 | 4 | 8 | ||||||
| SSMA2-30 | 30 | 2 | 4 | ||||||
| SSMA2-60 | 60 | 1 | 2 | ||||||
| SSMA2-120 | 120 | .50 | 1 | ||||||
| SSMA3-5 | 5 | 3-6 | 24 | 36 | M8x1 | 0.3 (3) | |||
| SSMA3-10 | 10 | 12 | 18 | ||||||
| SSMA3-15 | 15 | 8 | 12 | ||||||
| SSMA3-30 | 30 | 4 | 6 | ||||||
| SSMA3-60 | 60 | 2 | 3 | ||||||
| SSMA3-120 | 120 | 1 | 1.50 | ||||||
