Vari-Feed Wick Type Oilers

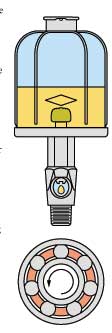

The Trico Vari-Feed Wick Oiler uses two principles to deliver a controlled amount of oil, one being gravity feed and the other being the wick. Together they provide a constant feed rate of oil.

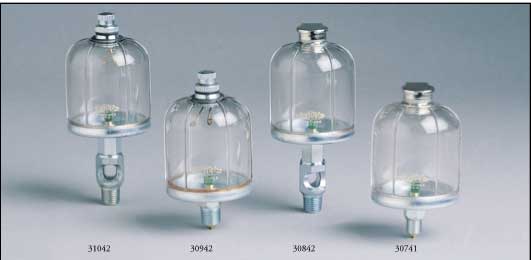

The Trico Vari-Feed Oiler is available in different styles. The first is the N and NS series for continuous flow. If you require a (on and off) feature then the NA and NAS series are for you.

Features:

* 5 wick speeds

* Feed rate can be adjusted by changing the wick

Model Number Reservoir Size Connection (NPT) Dimensions (in.)
Type N Type NS A B
30711 30811 1 oz 1/8 1-5/8 1-5/8
30712 30812 1 oz 1/4 1-5/8 1-5/8
30721 30821 2 oz 1/8 1-15/16 2-5/16
30722 30822 2 oz 1/4 1-15/16 2-5/16
30741 30841 4 oz 1/8 2-5/16 3
30742 30842 4 oz 1/4 2-5/16 3
30743 30843 4 oz 3/8 2-5/16 3
30781 30881 8 oz 1/8 2-5/8 4
30782 30882 8 oz 1/4 2-5/8 4
30783 30883 8 oz 3/8 2-5/8 4
Model Number Reservoir Size Connection (NPT) Dimensions (in.)
Type NA Type NAS A B
30911 31011 1 oz 1/8 1-5/8 2
30912 31012 1 oz 1/4 1-5/8 2
30921 31021 2 oz 1/8 1-15/16 2-7/16
30922 31022 2 oz 1/4 1-15/16 2-7/16
30941 31041 4 oz 1/8 2-5/16 3-1/4
30942 31042 4 oz 1/4 2-5/16 3-1/4
30943 31043 4 oz 3/8 2-5/8 4-5/16
30981 31081 8 oz 1/8 2-5/8 4-5/16
30982 31082 8 oz 1/4 2-5/8 4-5/16
30983 31083 8 oz 3/8 2-5/8 4-5/16

Replacement Wicks

 Specifactions
Part Number Length (in) Description Reservoir Butyrate Plastic
30701 1-3/8     White - Very Fast Feed Wick Oil Sight Acrylic
30702 Green/White - Fast Feed Wick Sight Gaskets Buna-N
30703 Green - Medium Feed Wick Material Steel & Brass
30704 Red/White - Slow Feed Wick Wicking Wire Cored Cotton
30705 Red - Very Slow Feed Wick Finish Bright Zinc Plated
Wicks come 50 per pack, also sold by the foot. Max Operating Temp 165º F Continuous
