Showa DPB, DPF, DSA, DSB and DS Piston Distributors

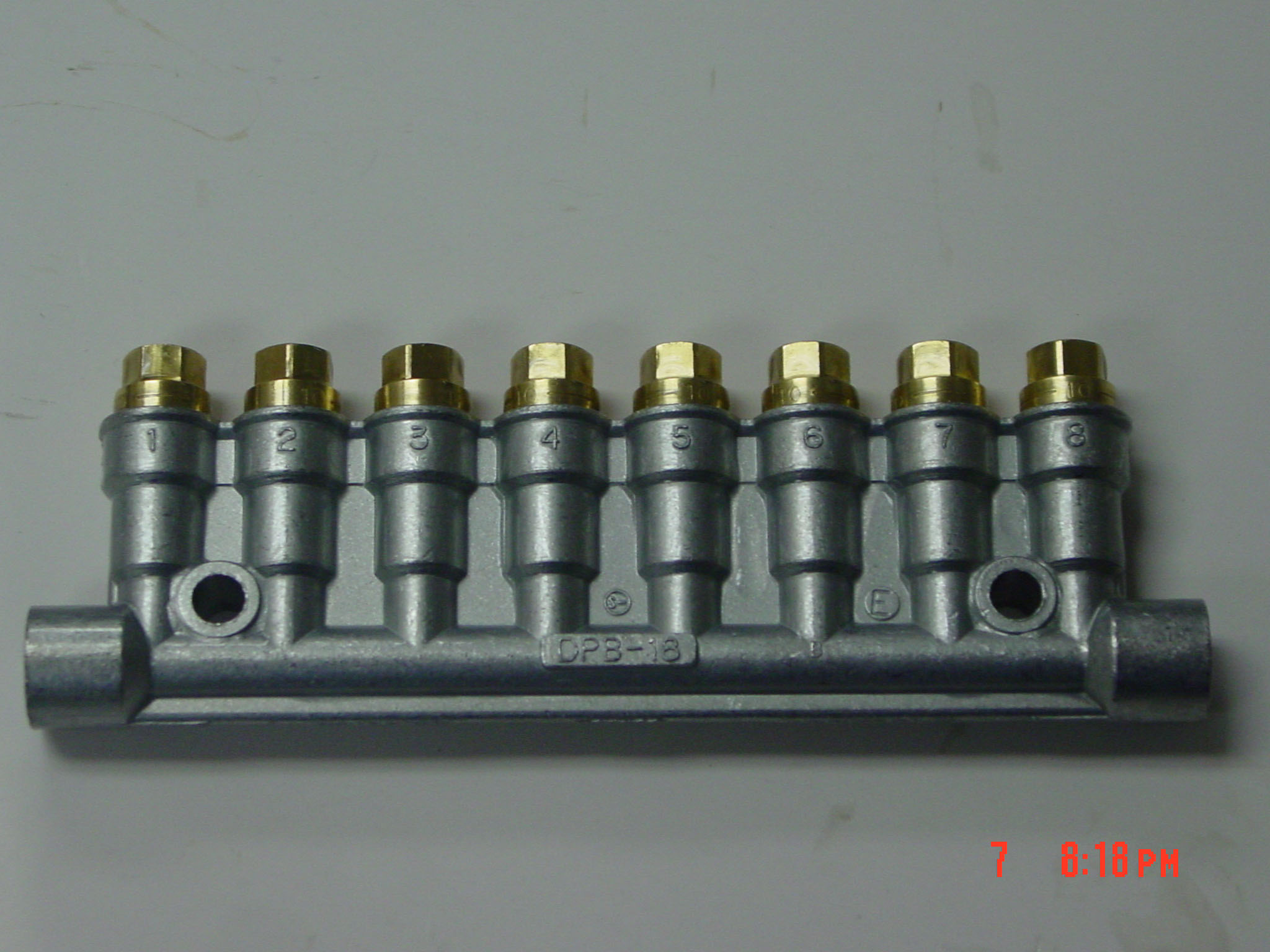

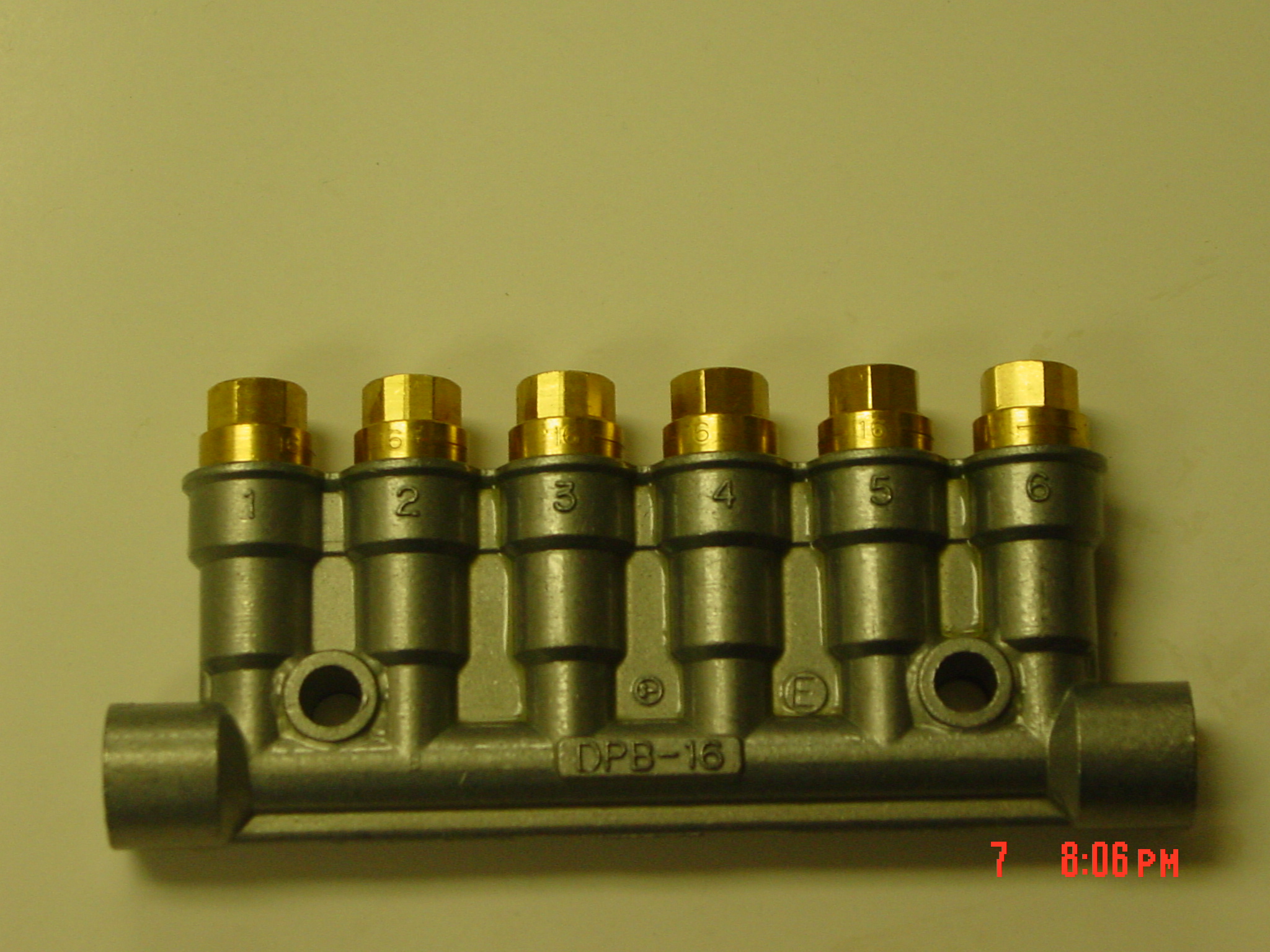

DPB-18 Shown	Part Number No. of Ports Available Discharge Volumes cc/st Operating Pressure Connection Size Inlet Outlet DPB-02 2 0.015, 0.03, 0.05, 0.08 9-30 kgf/cm2 M10x1 M8x1 DPB-03 3 0.015, 0.03, 0.05, 0.08 9-30 kgf/cm2 M10x1 M8x1 DPB-05 5 0.015, 0.03, 0.05, 0.08 9-30 kgf/cm2 M10x1 M8x1 click on Part Number for a Picture of each Piston Distributor DPB-11 1 0.03, 0.06, 0.1, 0.16 5-30 kgf/cm2 M10x1 M8x1 DPB-12 2 0.03, 0.06, 0.1, 0.16 5-30 kgf/cm2 M10x1 M8x1 DPB-13 3 0.03, 0.06, 0.1, 0.16 5-30 kgf/cm2 M10x1 M8x1 DPB-15 5 0.03, 0.06, 0.1, 0.16 5-30 kgf/cm2 M10x1 M8x1 DPB-16 6 0.03, 0.06, 0.1, 0.16 5-30 kgf/cm2 M10x1 M8x1 DPB-18 8 0.03, 0.06, 0.1, 0.16 5-30 kgf/cm2 M10x1 M8x1 DPB-110 10 0.03, 0.06, 0.1, 0.16 5-30 kgf/cm2 M10x1 M8x1 click on Part Number for a Picture of each Piston Distributor DPB-21 1 0.1, 0.2, 0.4, 0.6 8-30 kgf/cm2 M12x1 M8x1 DPB-22 2 0.1, 0.2, 0.4, 0.6 8-30 kgf/cm2 M12x1 M8x1 DPB-23 3 0.1, 0.2, 0.4, 0.6 8-30 kgf/cm2 M12x1 M8x1 DPB-25 5 0.1, 0.2, 0.4, 0.6 8-30 kgf/cm2 M12x1 M8x1 DPB-26 6 0.1, 0.2, 0.4, 0.6 8-30 kgf/cm2 M12x1 M8x1 DPB-28 8 0.1, 0.2, 0.4, 0.6 8-30 kgf/cm2 M12x1 M8x1 DPB-210 210 0.1, 0.2, 0.4, 0.6 8-30 kgf/cm2 M12x1 M8x1 click on Part Number for a Picture of each Piston Distributor DPF-22 2 0.1, 0.2, 0.4, 0.6 8-30 kgf/cm2 M12x1 M8x1 DPF-23 3 0.1, 0.2, 0.4, 0.6 8-30 kgf/cm2 M12x1 M8x1 DPF-25 5 0.1, 0.2, 0.4, 0.6 8-30 kgf/cm2 M12x1 M8x1 click on Part Number for a Picture of each Piston Distributor DPB-31 1 0.2, 0.4, 0.6, 1.0, 1.5 8-30 kgf/cm2 M12x1 M8x1 DPB-32 2 0.2, 0.4, 0.6, 1.0, 1.5 8-30 kgf/cm2 M12x1 M8x1 DPB-33 3 0.2, 0.4, 0.6, 1.0, 1.5 8-30 kgf/cm2 M12x1 M8x1 click on Part Number for a Picture of each Piston Distributor

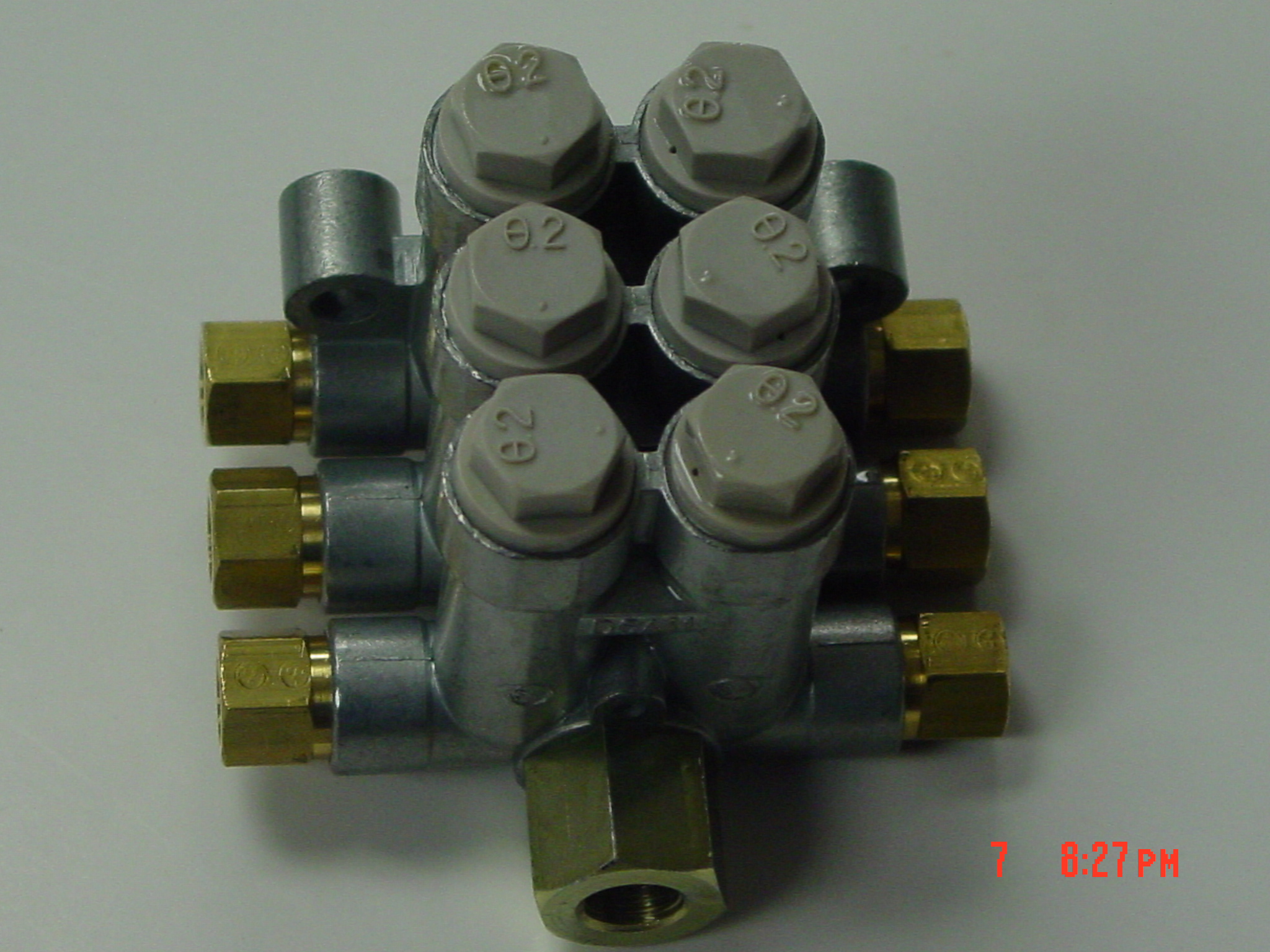

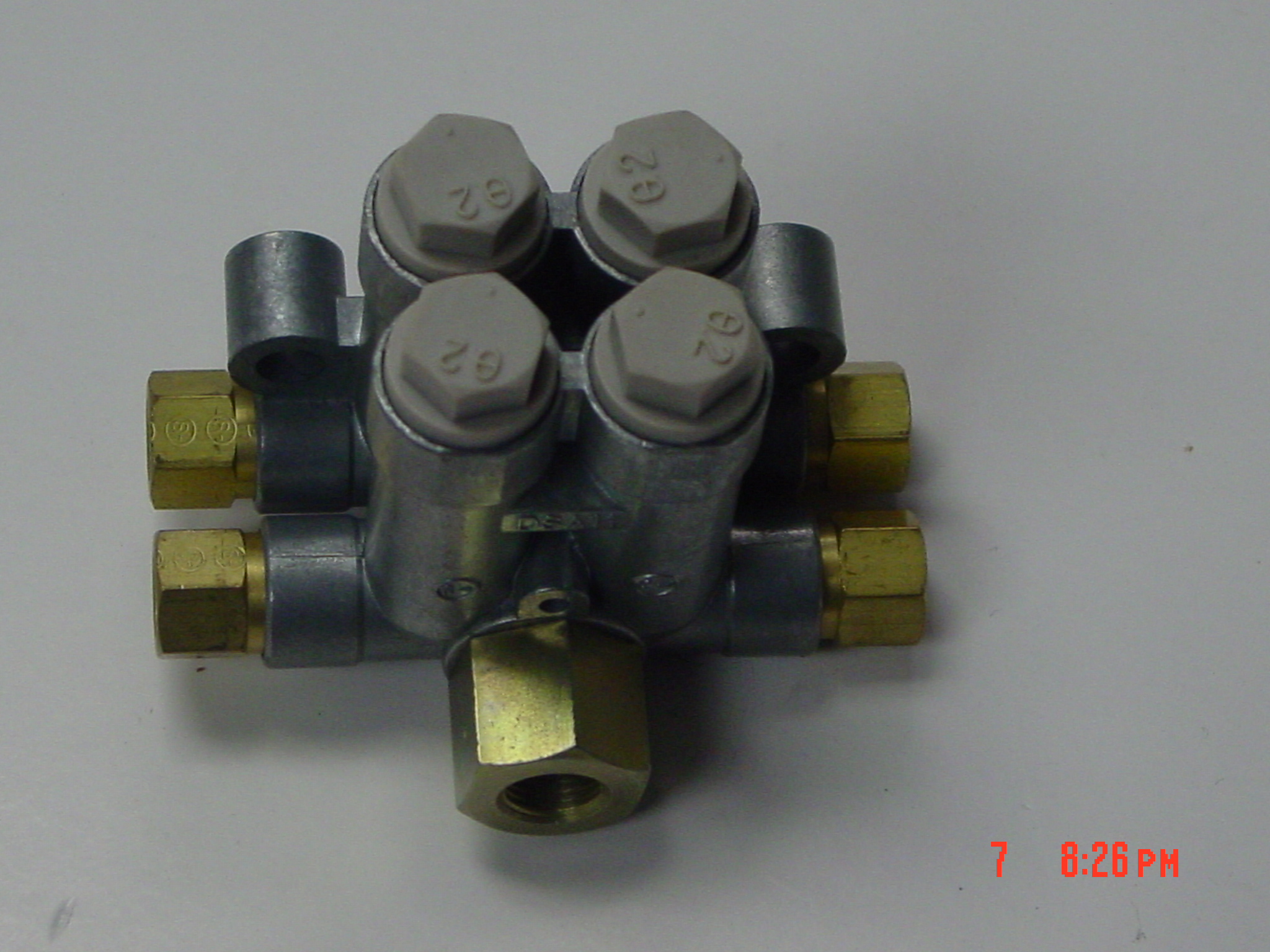

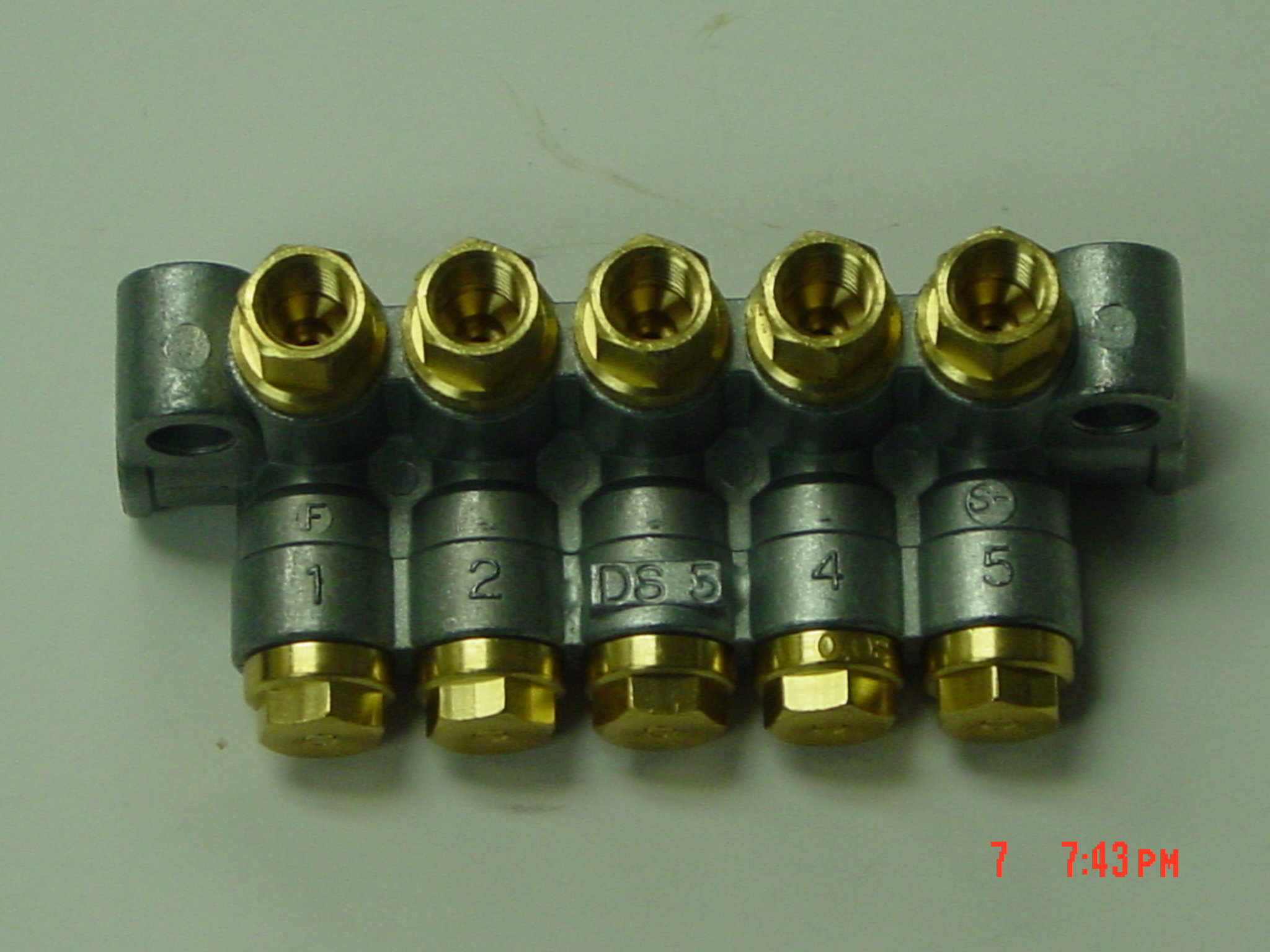

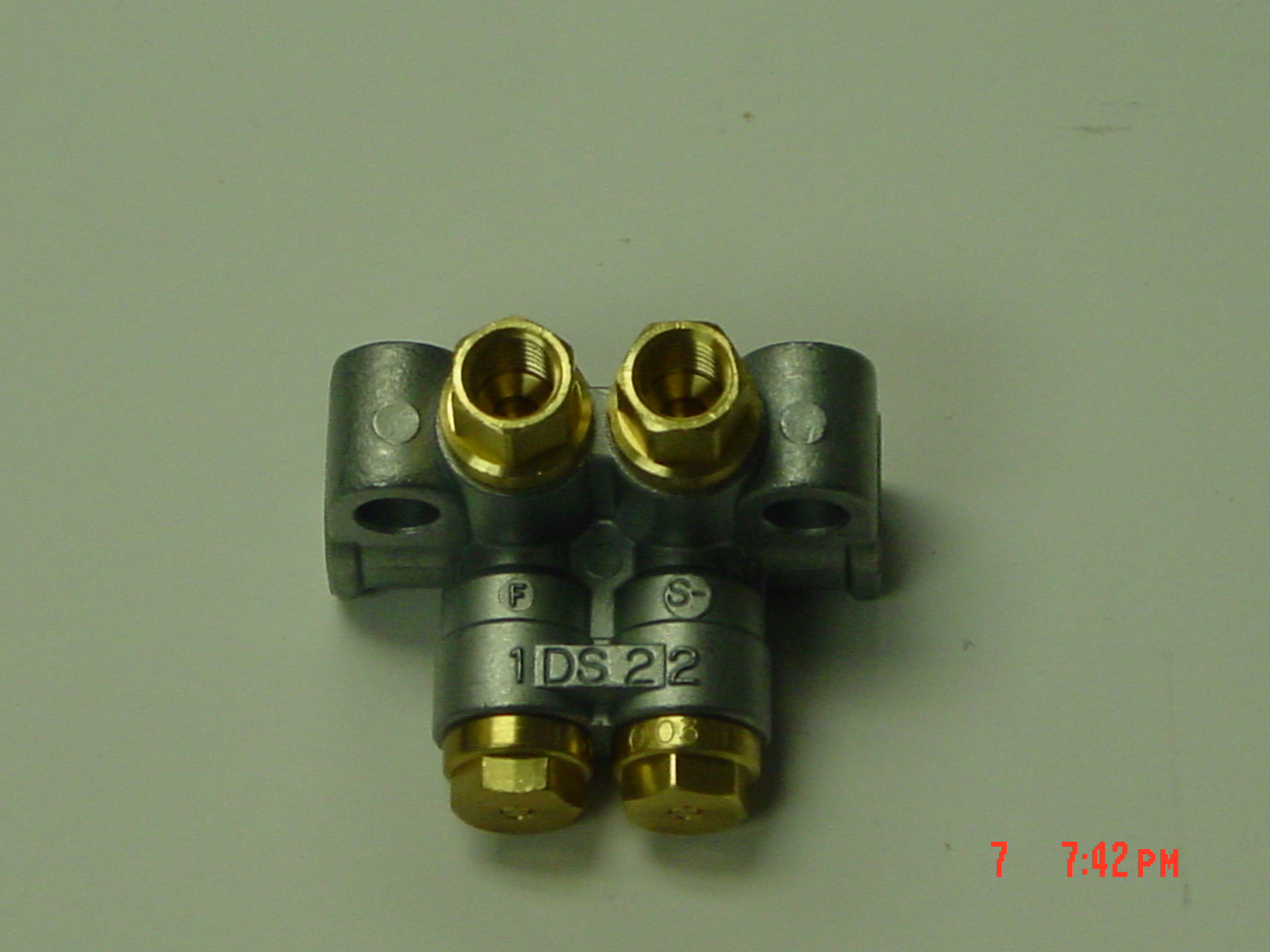

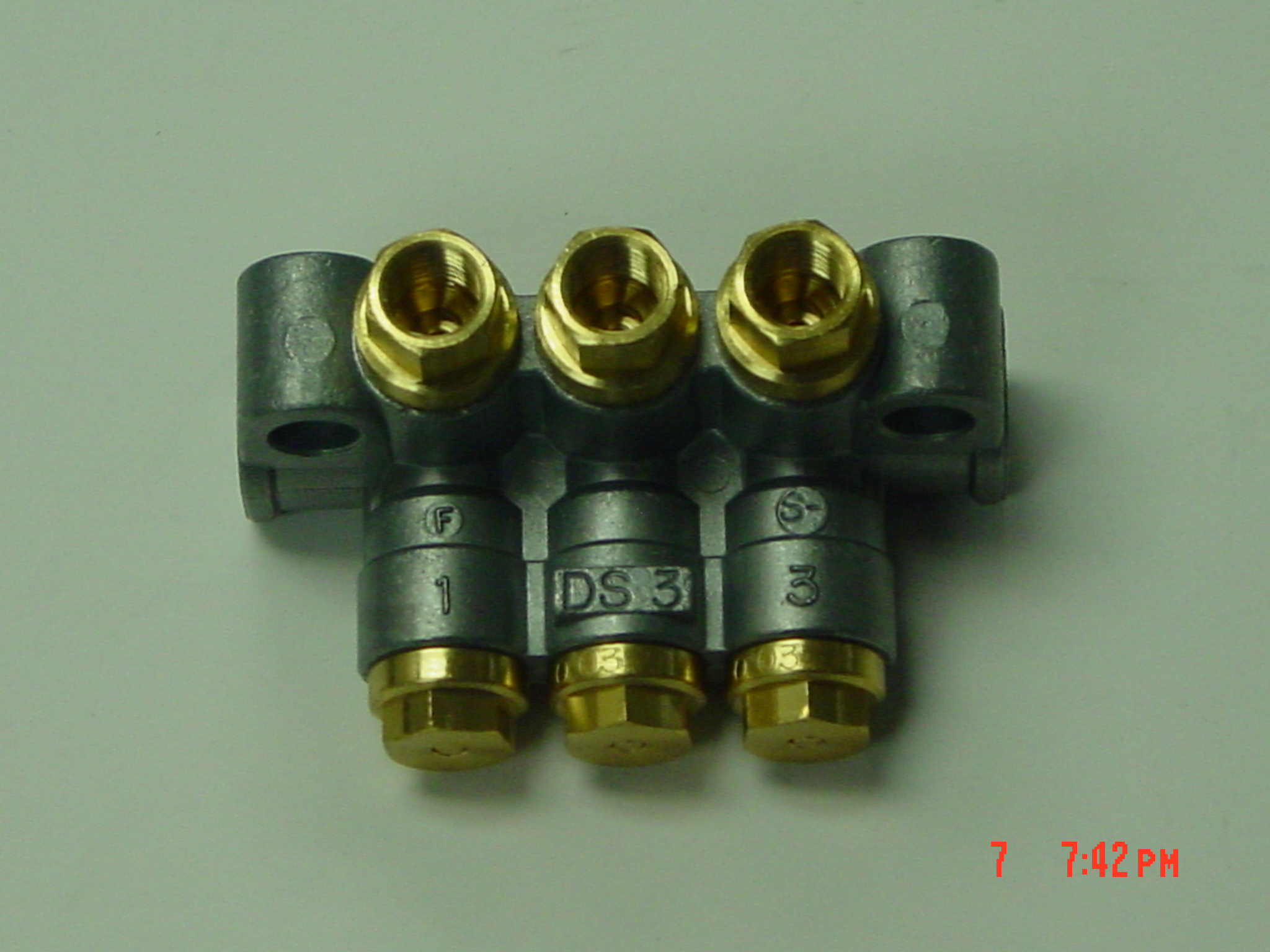

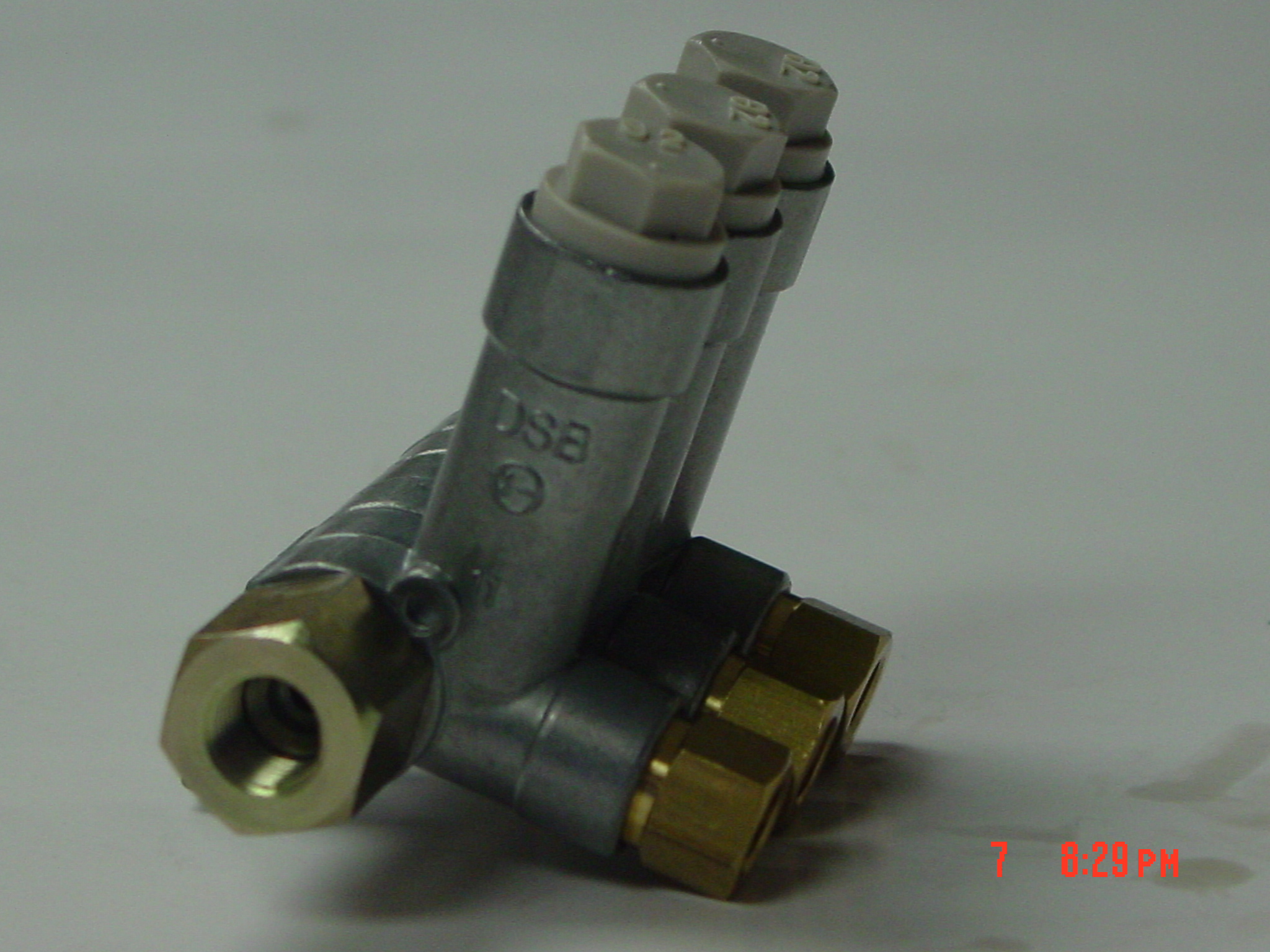

DSA-II (2) Shown	Part Number No. of Ports Available Discharge Volumes cc/st Operating Pressure Connection Size Inlet Outlet DSA-II (2) 2 0.1, 0.2, 0.5, 1.0 5-30 kgf/cm2 M10x1 M8x1 DSA-4 4 0.1, 0.2, 0.5, 1.0 5-30 kgf/cm2 M10x1 M8x1 DSA-6 6 0.1, 0.2, 0.5, 1.0 5-30 kgf/cm2 M10x1 M8x1 DSA-8 8 0.1, 0.2, 0.5, 1.0 5-30 kgf/cm2 M10x1 M8x1 click on Part Number for a Picture of each Piston Distributor DSB-3 3 0.1, 0.2, 0.5, 1.0 5-30 kgf/cm2 M10x1 M8x1 DSB-5 5 0.1, 0.2, 0.5, 1.0 5-30 kgf/cm2 M10x1 M8x1 DSB-7 7 0.1, 0.2, 0.5, 1.0 5-30 kgf/cm2 M10x1 M8x1 click on Part Number for a Picture of each Piston Distributor Part Number No. of Ports Available Discharge Volumes cc/st Operating Pressure Connection Size Inlet Outlet DS-2Z 2 0.03, 0.05, 0.08, 0.1 10-30 fgf/cm2 M10x1 M8x1 DS-3Z 3 0.03, 0.05, 0.08, 0.1 10-30 fgf/cm2 M10x1 M8x1 DS-5Z 5 0.03, 0.05, 0.08, 0.1 10-30 fgf/cm2 M10x1 M8x1 DS-8Z 8 0.03, 0.05, 0.08, 0.1 10-30 fgf/cm2 M10x1 M8x1 click on Part Number for a Picture of each Piston Distributor

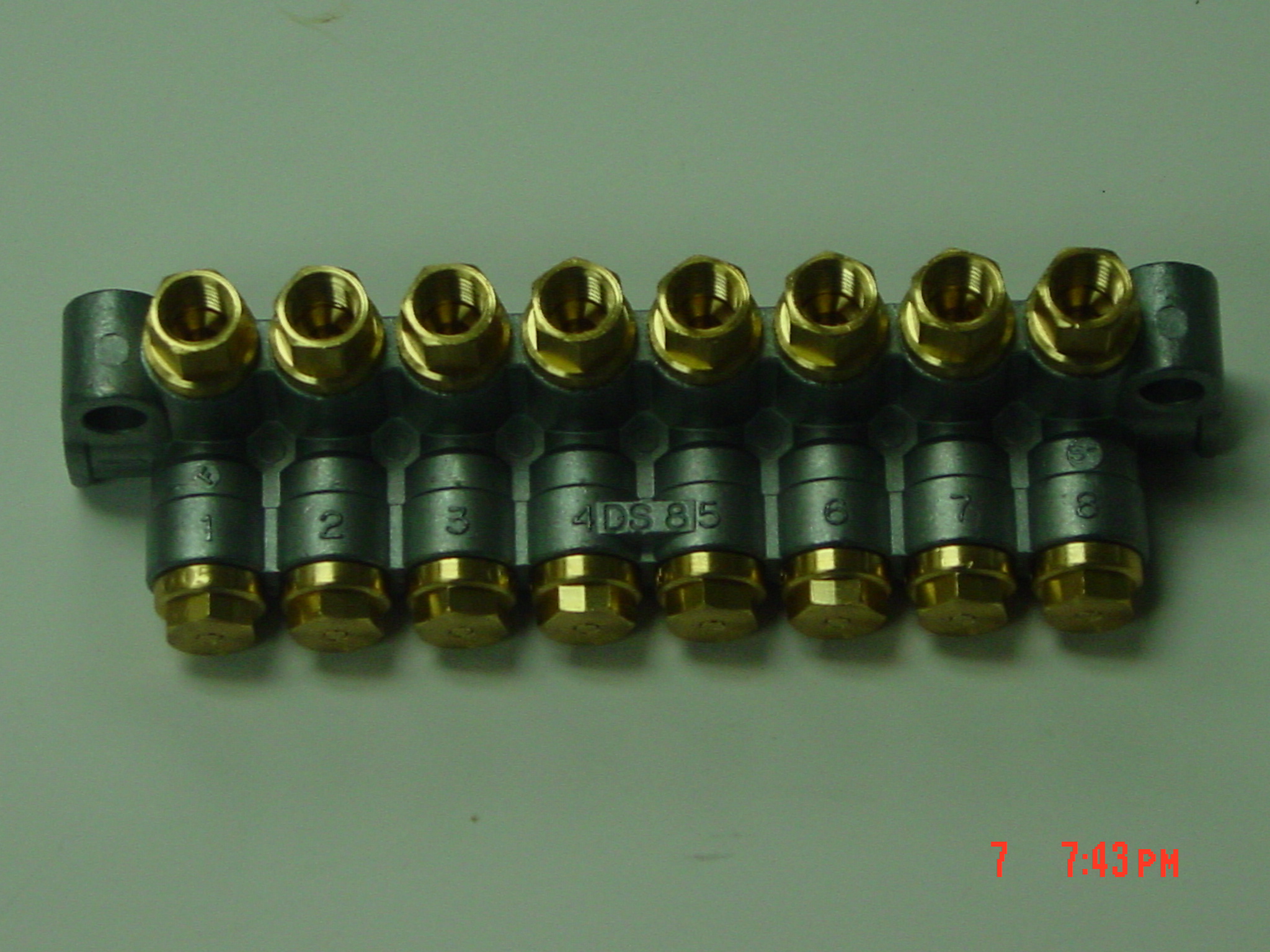

DS-8Z Shown
