Technical Specifications

Part Number

(Click on Part No. for more information)

 Output (liters/min) Reservoir Size (Liters) Reservoir Material (K=Plastic) (B=Metal) Control Components
Manual/ External IG12 IG38-30 IZ38-30 Push Button (DK) Pressure Switch (DS) Low Level Switch (WS) Pressure Gauge (MA)

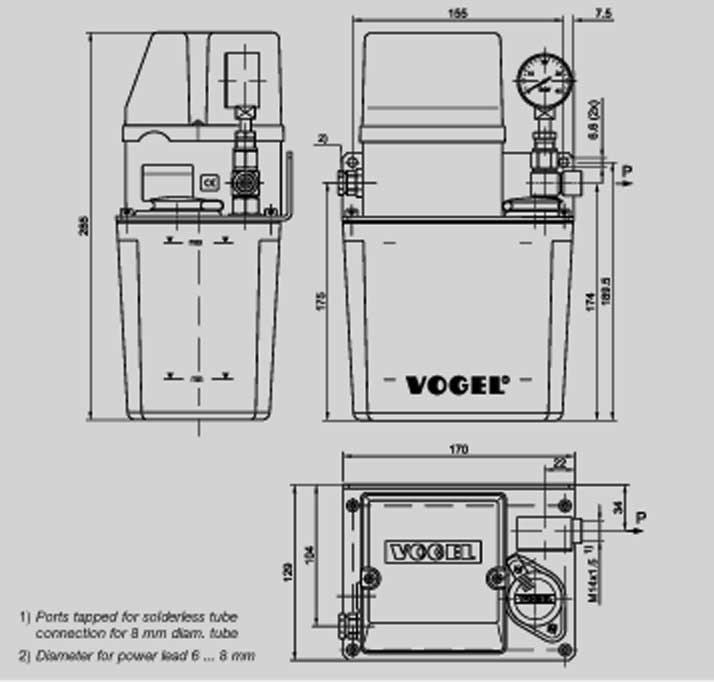

MKU1-K2-10000 0.1 1.8 K External
MKU1-K2-10003 0.1 1.8 K External DS MA

MKU1-KW2-10000 0.1 1.8 K External WS
MKU1-KW2-10001 0.1 1.8 K External DS WS
MKU1-KW2-10003 0.1 1.8 K External WS MA
MKU1-KW2-10004 0.1 1.8 K External DS WS MA

MKU2-K3-20000 0.2 3 K * DK DS
MKU2-K3-22005 0.2 3 K * DK DS
MKU5-K3-22005 0.5 3 K * DK DS WS

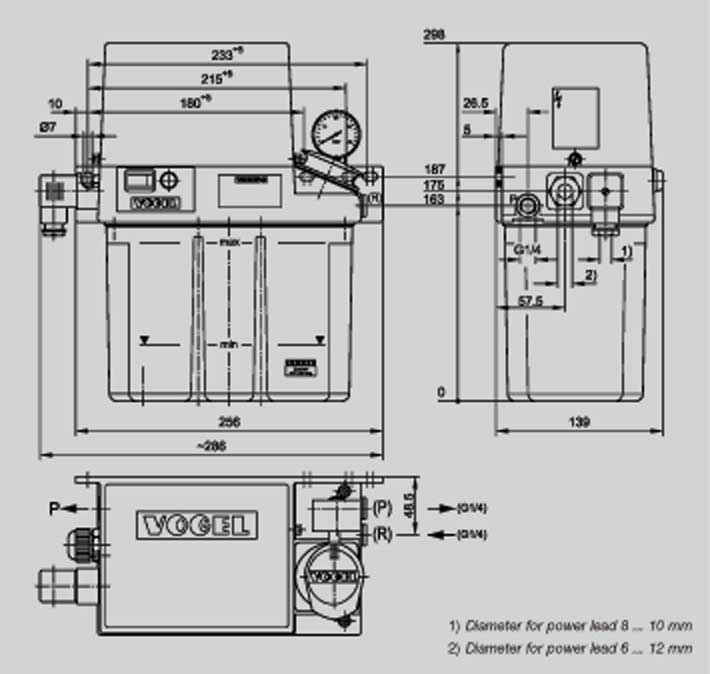

MKU2-KW3-20001 0.2 3 K * DK DS WS
MKU2-KW3-20003 0.2 3 K * DK DS WS MA
MKU2-KW3-20004 0.2 3 K * DK WS MA
MKU2-KW3-20005 0.2 3 K * DK WS
MKU2-KW3-21003 0.2 3 K * DK DS WS MA
MKU2-KW3-21005 0.2 3 K * DK WS

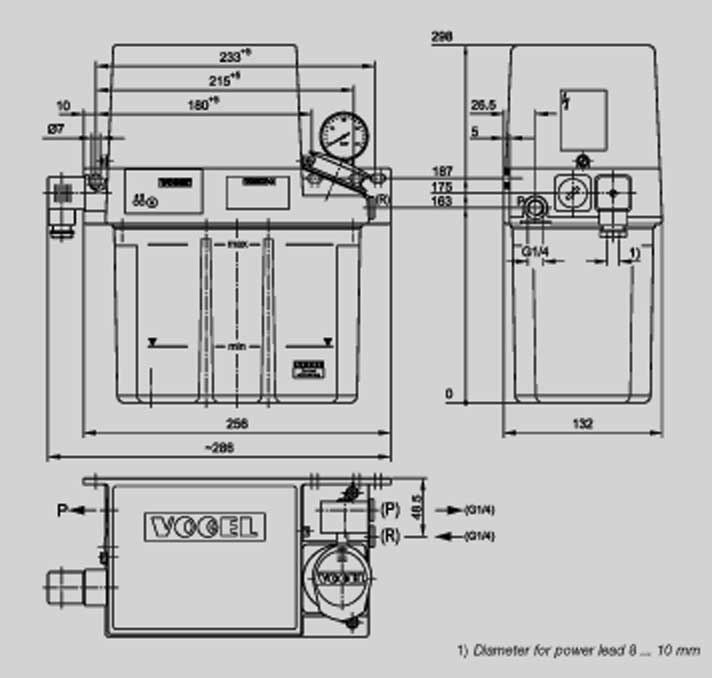

MKU2-KW3-22001 0.2 3 K * DK DS WS
MKU2-KW3-22003 0.2 3 K * DK DS WS MA
MKU2-KW3-22011 0.2 3 K * DK DS WS
MKU2-KW3-22013 0.2 3 K * DK DS WS MA
MKU5-KW3-20001 0.5 3 K * DK DS WS
MKU5-KW3-20003 0.5 3 K * DK DS WS MA
MKU5-KW3-22003 0.5 3 K * DK DS WS MA

MKU5-K6-22005 0.2 6 K * DK DS

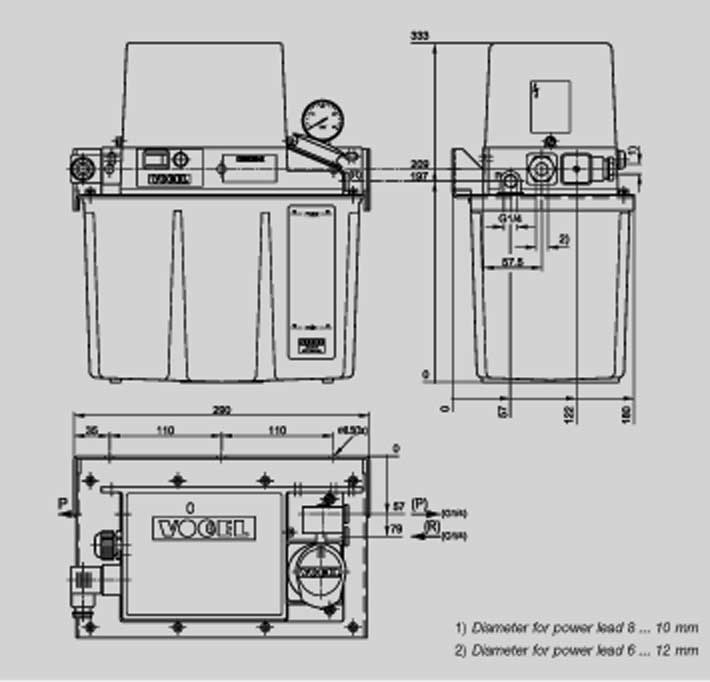

MKU2-KW6-20001 0.5 6 K * DK DS WS
MKU2-KW6-20003 0.2 6 K * DK DS WS MA
MKU2-KW6-22003 0.2 6 K * DK DS WS MA
MKU2-KW6-20001 0.5 6 K * DK DS WS

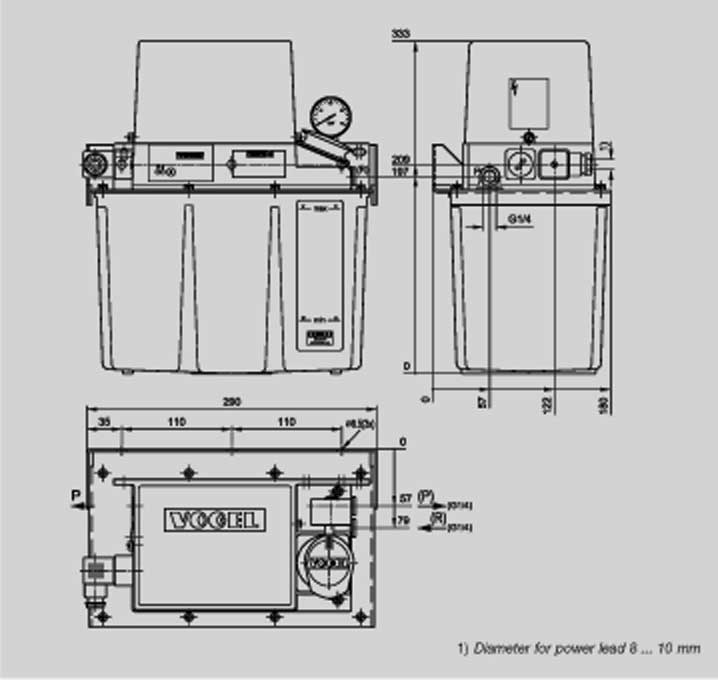

MKU5-KW6-22001 0.5 6 K * DK DS WS
MKU5-KW6-22003 0.5 6 K * DK DS WS MA

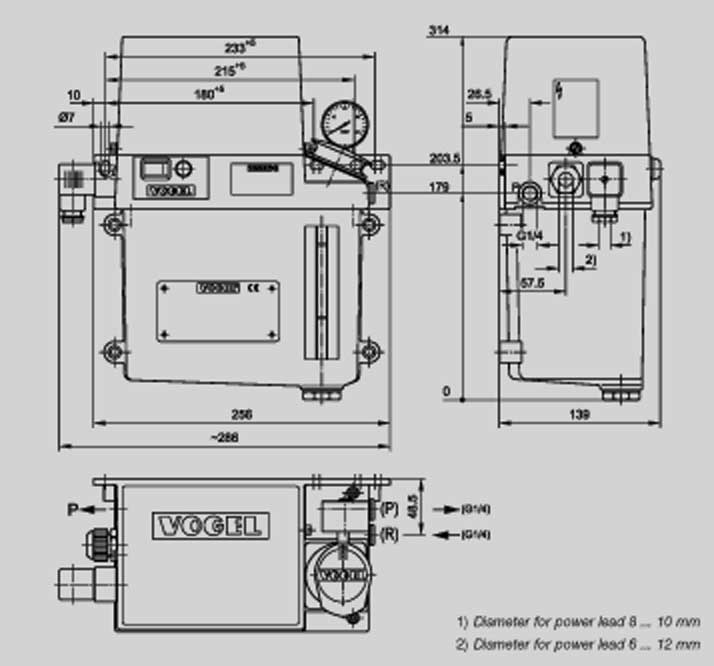

MKU2-BW3-20001 0.2 3 B * DK DS WS
MKU2-BW3-20003 0.2 3 B * DK DS WS MA
MKU2-BW3-20005 0.2 3 B * DK WS
MKU2-BW3-21003 0.2 3 B * DK DS WS MA

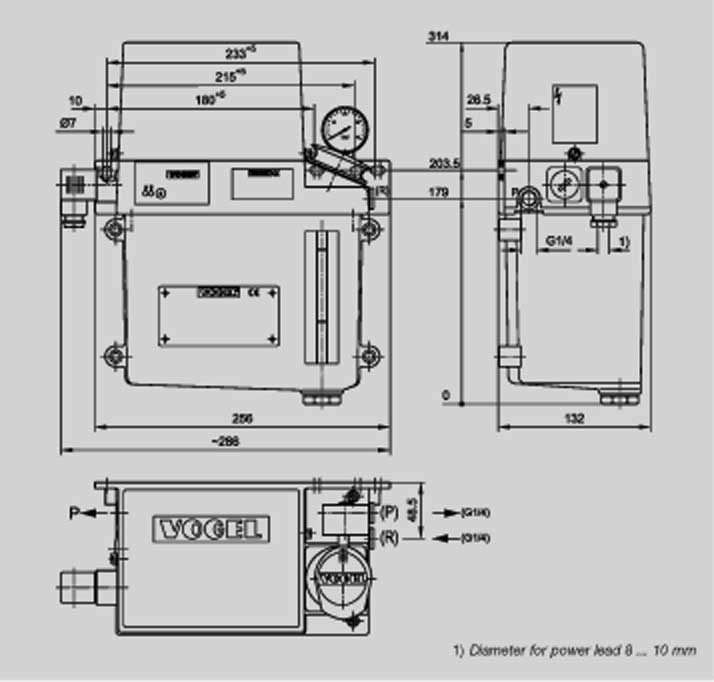

MKU2-BW3-22001 0.2 3 B * DK DS WS
MKU2-BW3-22003 0.2 3 B * DK DS WS MA
MKU2-BW3-22011 0.2 3 B * DK DS WS
MKU2-BW3-22013 0.2 3 B * DK DS WS MA
MKU2-BW3-21003 0.5 3 B * DK DS WS MA

MKU Gear Pumps use Vogel Piston Distributors to distribute oil.
Gear Pump
Motor
Pressure Switch
Low Level Switch

Output 50Hz - 0.1, 0.2, 0.5 (l/min)

Output 60Hz - 0.12, 0.24, 0.6 (l/min)

Operating Pressure - 30 bars

Operating Temp - +10 to +40 °C

50/60Hz, 115V

50/60Hz, 230V

Type - Closes when pressure builds up

Max. Switching Voltage - 42V

Max. Switching Current - 2.5A

Pressure - 20 bars

Type - opens in event of low lubricant

Max. Switching voltage - 42V

Max. Switching Current - 0.7A

Max. Contact Rating - 50 VA ²
