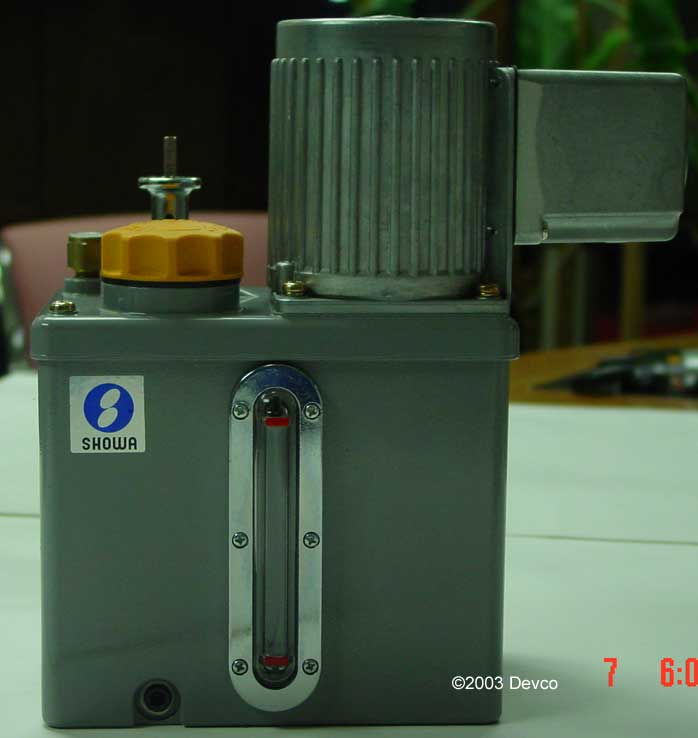

YMAS Piston Pump
|
Click on Image for Larger View Accessories: Meter Units, Junctions, Tubing and Adapters |
AUTOMATIC CYCLIC - Heavy Duty | ||||||||
|
The YMAS is the workhorse of the automatic cyclic pumps. Its Heavy-Duty pump, 10 Watt Motor and aluminum reservoir (2.0 Lliters) makes it especially usable in tough production environments. Features include a wide opening for easy filling, sight gauge for level indication, a drop in filter for easy maintenance, and a drain plug to facilitate cleaning or changing lubricates. A float switch and larger reservoirs are optional. If you are looking for a pump with a smaller reservoir, try the Showa SSMA. The Showa SMD and Showa SMA are other alternatives. |
|||||||||
|
Motor Voltages: 10 Watt 100/110V, 1-PH, 50/60 Hz 200/220V, 1-PH, 50/60 Hz 200/220V, 3-PH, 50/60 Hz 400/440V, 3-PH, 50/60 Hz |
Low Level Switch (optional)
|
||||||||
|
Notice: Suction Filter should be replaced every 6 months or less. Filter Part Number: F/1001 |
|||||||||
| Model Number | Cycle Time (min) | Output (cc/cycle) "adjustable" | Output (cc/hour) | Output Thread | Operating Pressure MPA (kgf/cm2) | Pump Dimensions (mm) | |||
| Min | Max | Length | Depth | Height | |||||
| YMAS3-1 | 1 | 1~3 | 60 | 180 | M8x1 | 0.5 (5) | 206 | 135 | 246 |
| YMAS3-5 | 5 | 12 | 36 | ||||||
| YMAS3-10 | 10 | 6 | 18 | ||||||
| YMAS3-15 | 15 | 4 | 12 | ||||||
| YMAS3-30 | 30 | 2 | 6 | ||||||
| YMAS3-60 | 60 | 1 | 3 | ||||||
| YMAS3-120 | 120 | .50 | 1.50 | ||||||
| YMAS6-1 | 1 | 3-6 | 180 | 360 | M8x1 | 0.45 (4.5) | 206 | 135 | 246 |
| YMAS6-5 | 5 | 36 | 72 | ||||||
| YMAS6-10 | 10 | 18 | 36 | ||||||
| YMAS6-15 | 15 | 12 | 24 | ||||||
| YMAS6-30 | 30 | 6 | 12 | ||||||
| YMAS6-60 | 60 | 3 | 6 | ||||||
| YMAS6-120 | 120 | 1.5 | 3 | ||||||
|
Available Reservoirs (Click on Image for Larger View) |
|||||||||
|
TP-2 Plastic (2 Liters) Length 160 x Depth 110 x Height 130 |

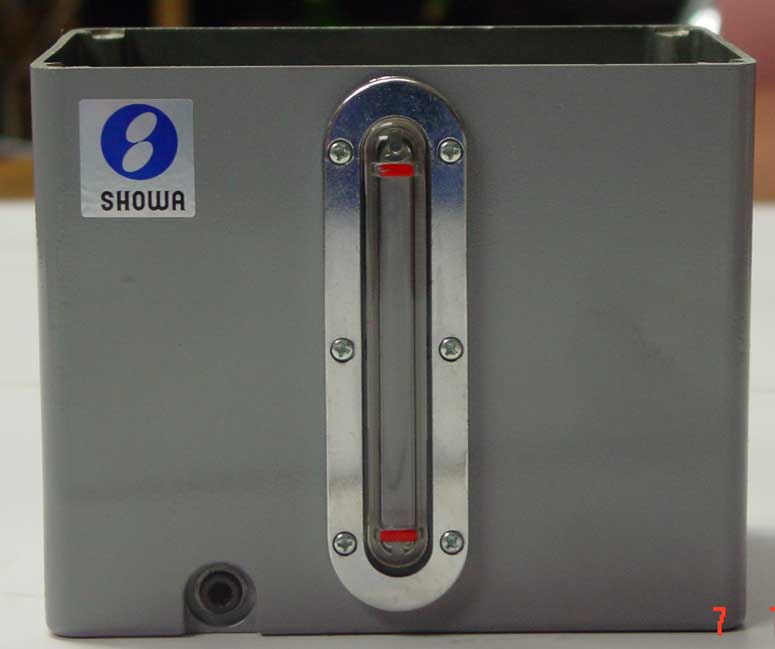

TD-2 Aluminum (2 Liters) |
||||||||
|
TY-4P Aluminum (4 Liters) Length 260 x Depth 163 x Height 143 |

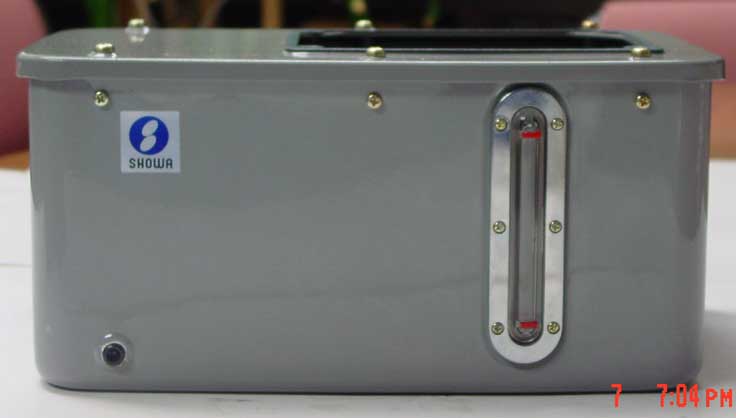

TY-6P Aluminum (6 Liters) Length 310 x Depth 183 x Height 143 |
||||||||
|

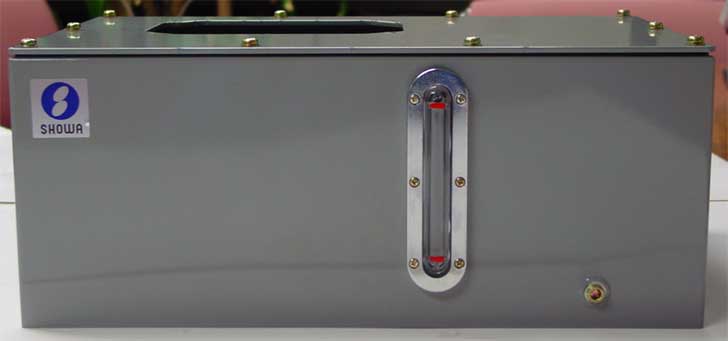

TY-12P Aluminum (12 Liters) Length 370 x Depth 237 x Height 147 |

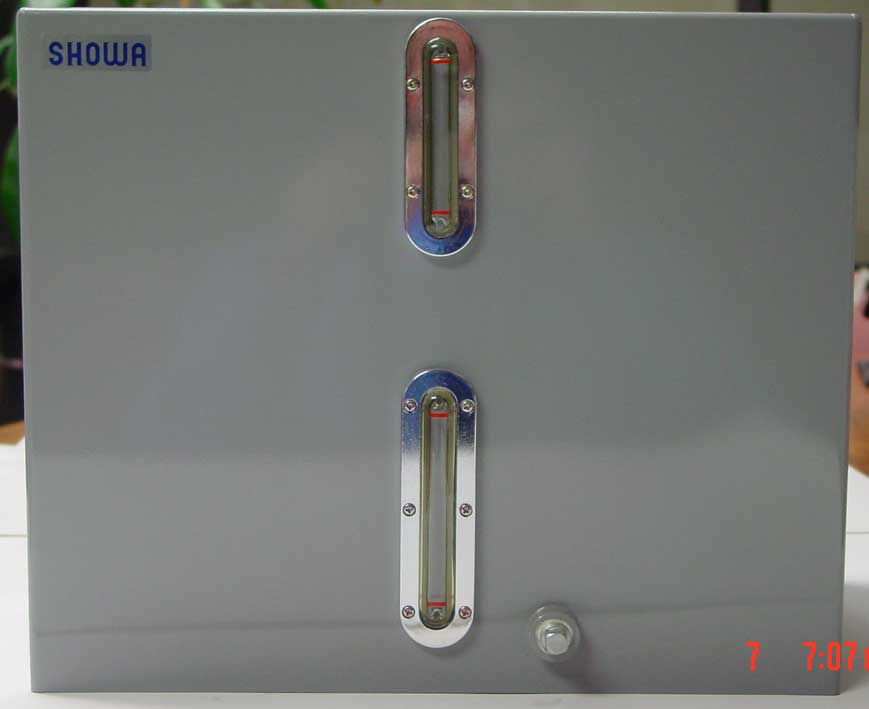

TY-20P Aluminum (20 Liters) Length 350 x Depth 217 x Height 290 |
||||||||
